Features HDBaseT Technology- optimized for whole-home or commercial distribution of uncompressed high-definition signals at twice the distance of HDMI cables without degradation

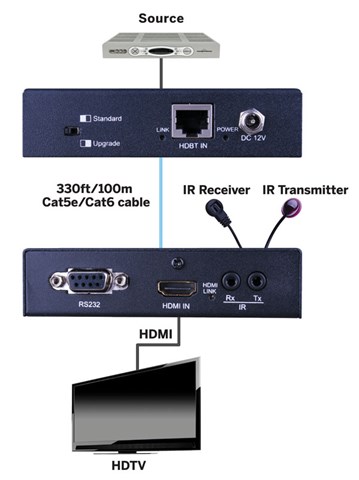

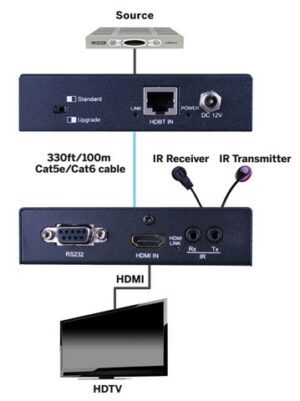

HDBaseT Extender can connect uncompressed full HD digital video- audio- IR- 100BaseT Ethernet- and various control signals via RS-232 through a single 330ft/100m Cat5e/Cat6 cable
Features Power Over Ethernet (PoE)- integrates power into the Cat5e/6 cable- requiring no power supply for either the Transmitting unit or Receiving unit (opposite of unit that is plugged in to power)
4K2K (2160p @30hz) resolution compatible
HDBaseT Technology that supports HDMI Deep Color- 3D- and up to 4K2K resolution @ 30hZ
Transmission Range: Extends 1080p resolutions up to 330ft (100m) over a single Cat5e/6 cable and 2160p/30hZ (4K2K) resolutions up to 230ft (70m)
HDCP Compliant
EDID pass through
CEC support
Auto equalization
Pure unaltered uncompressed 7.1ch digital HDMI over Cat.5/5e/6 cable transmission
DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
Wideband IR signal from 20KHz to 60KHz
Bi-directional IR pass-through
Wall mountable housing design for a quick and easy installation
Dimensions: 4.2” (107mm) W x 1” (27mm) H x 4.2” (107mm) D

Package Contents:

(1) 280626 (Transmitter and Receiver)
(1) IR Receiver (RX)
(1) IR Transmitter (TX)
(1) DC 12V- 2A power supply
(1) Rack-mounting ear set
(1) User Manual
