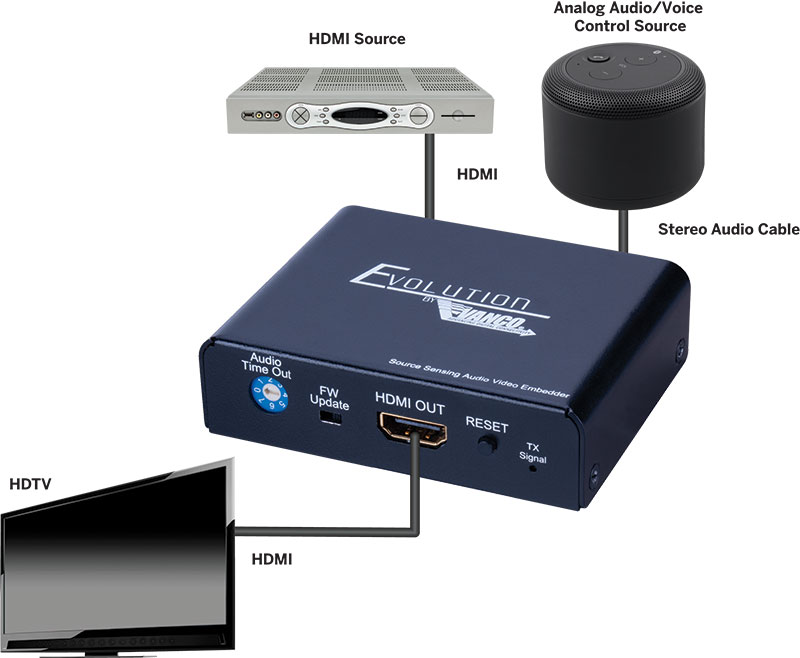

Automatically embeds audio from a secondary analog audio source onto an HDMI video signal
Switches back to HDMI Input audio once analog audio signal is not present
Adjustable gain for increased volume and stabilizing audio switching
Supports 4K@60Hz, 4:4:4 chroma sampling with HDR10 and Dolby Vision video
HDCP 2.2/1.4 Compliant
Supports CEC Bypass
HDMI Passthrough of PCM, DTS, and Dolby audio formats
USB port for power, firmware updates, and software setup
Dimensions: 5” W x 2.6” H x 1” D
Patent No. US 10,848,818 B2

Package Contents:

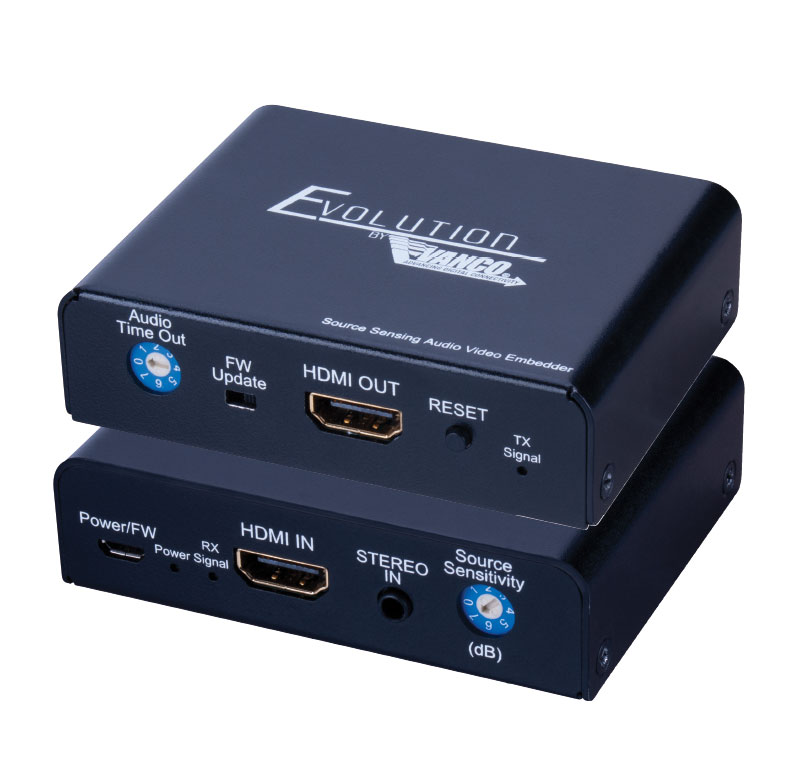

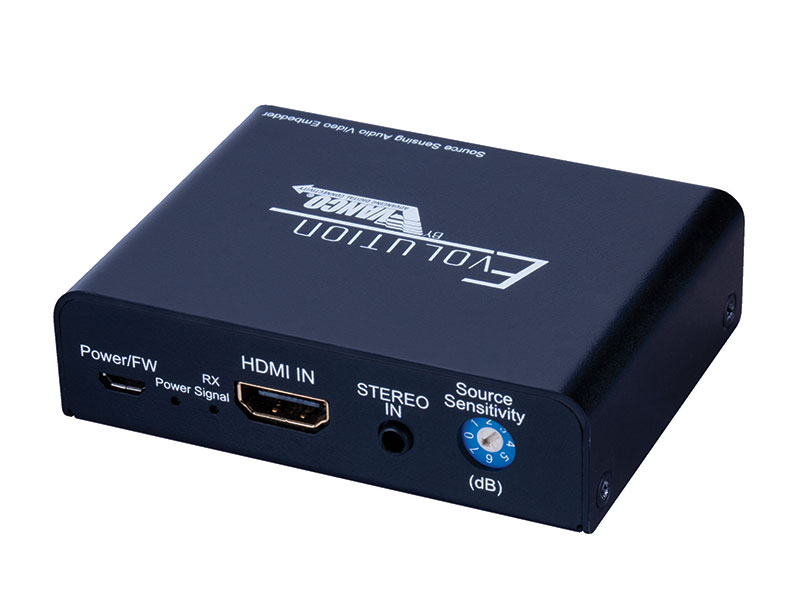

EVOSKLZ1 Audio Embedder
5V Power Supply
Product Manual
