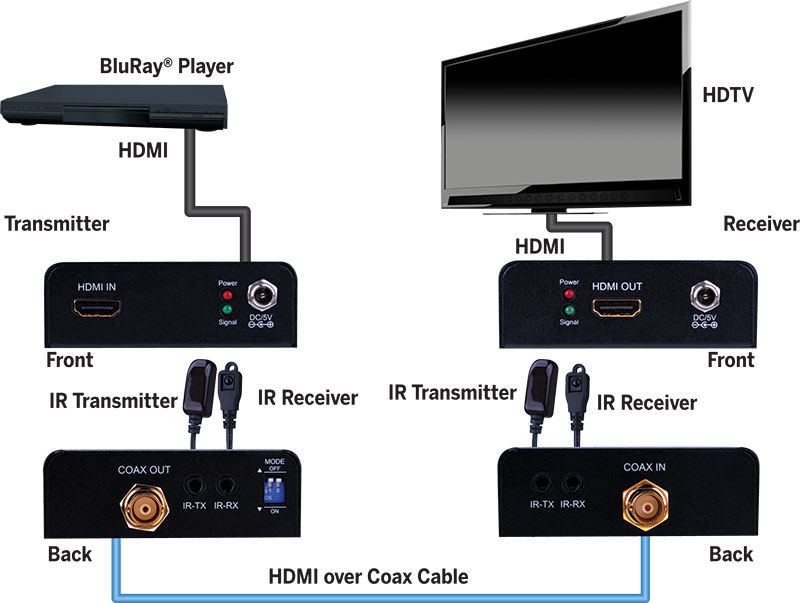

Allows HDMI audio/video signals to be transmitted using a single coaxial cable
Wide band Bi-directional IR system (20KHz to 60KHz) allowing for control of source or display
Transmission Range: Extends 1080p resolution up to 394ft/120m over RG6 coaxial cable (dual and quad-shielded); Extends 1080p resolution up to 164ft/50m over RG59 coaxial cable
Works with HDMI and HDCP compliant devices
Supports up to 1080p/60 High Definition resolution
Supports video resolutions 480i- 576i- 720p- 1080i- and 1080p
7.1-channel audio supported; Supports DTS-HD and Dolby TrueHD high bit rate audio
EDID manual select control – Supports Copy EDID
Compact and wall mounting housing design for easy and robust installation
Fully compatible with any Evolution by Vanco product
Dimensions: 3.35” (85mm) W x 1.1” (28mm) H x 3.19” (81mm) D

Package Contents:

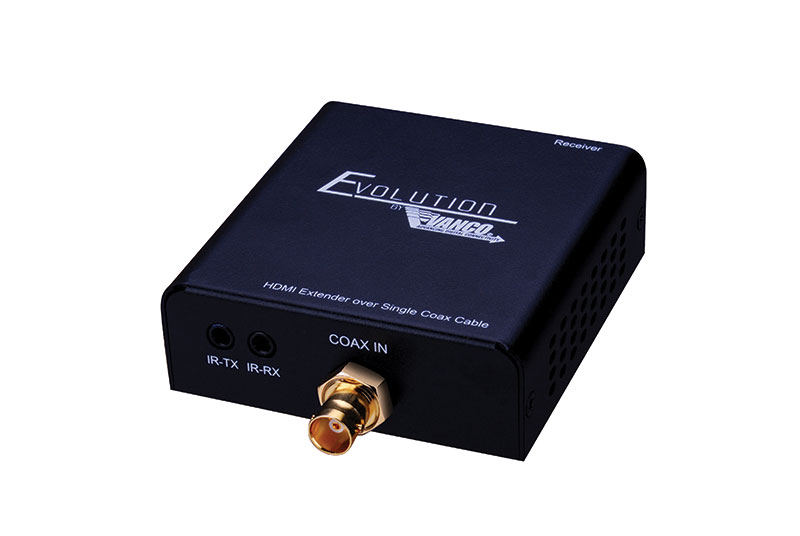

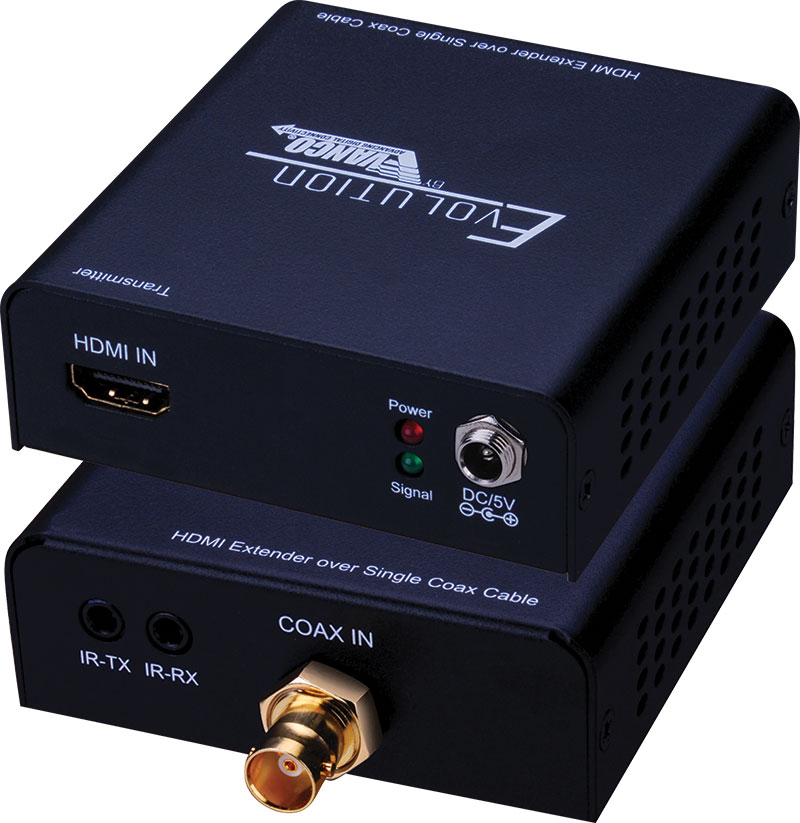

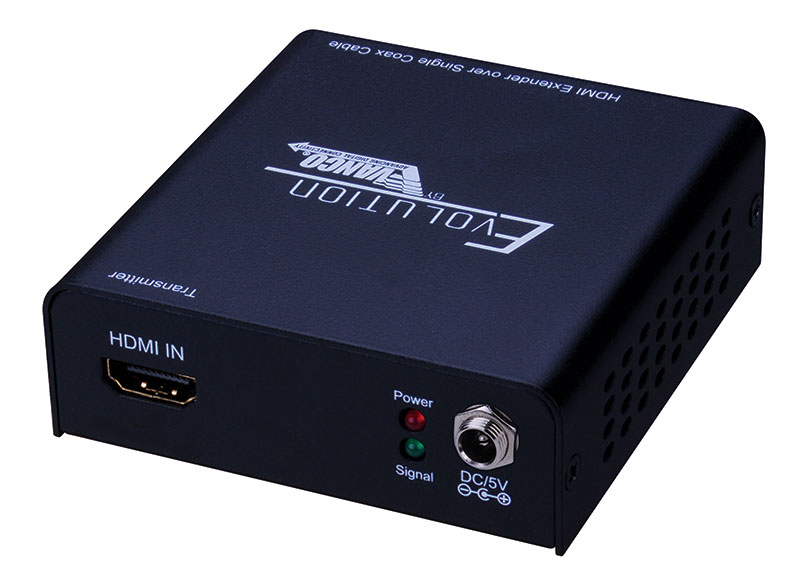

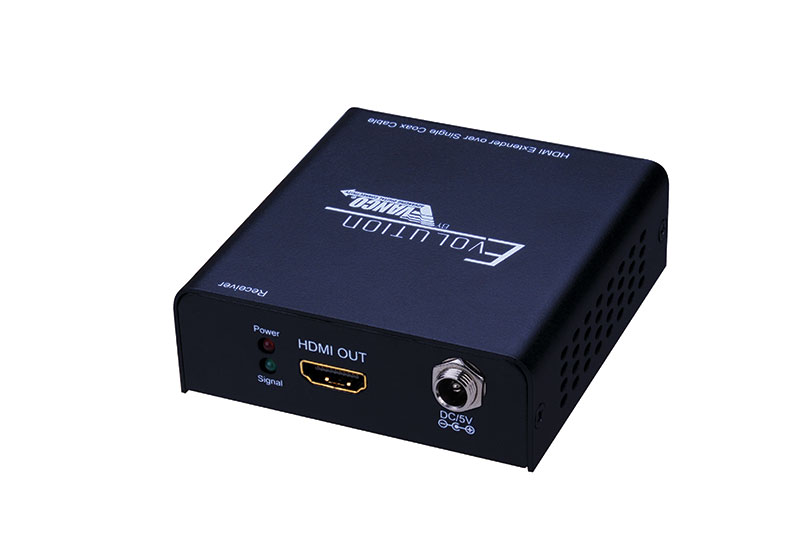

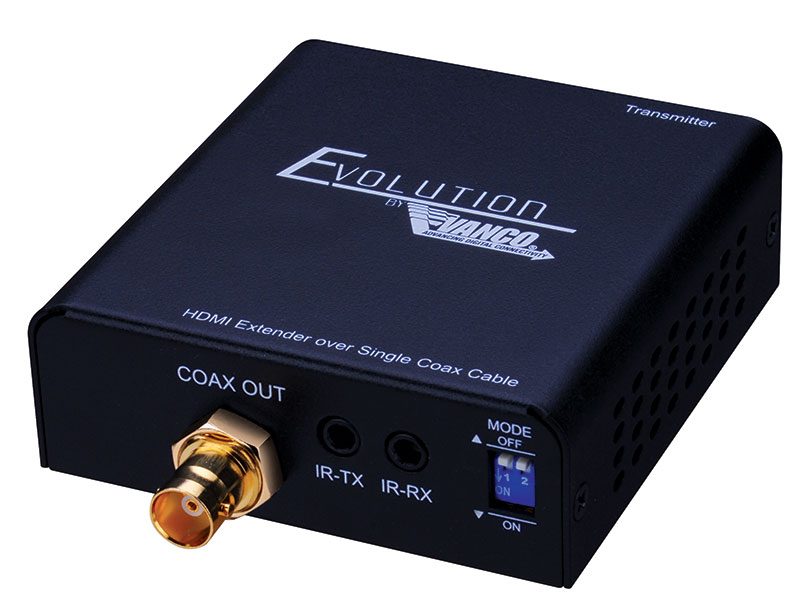

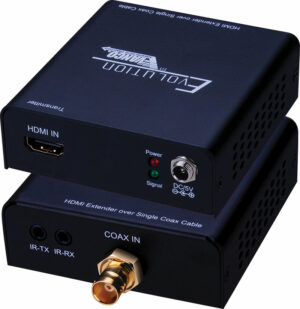

EVEX2004 (TX & RX)
IR Blaster (TX)
IR Receiver (RX)
(2) DC 5V power supplies
Mounting hardware
Product Manual
