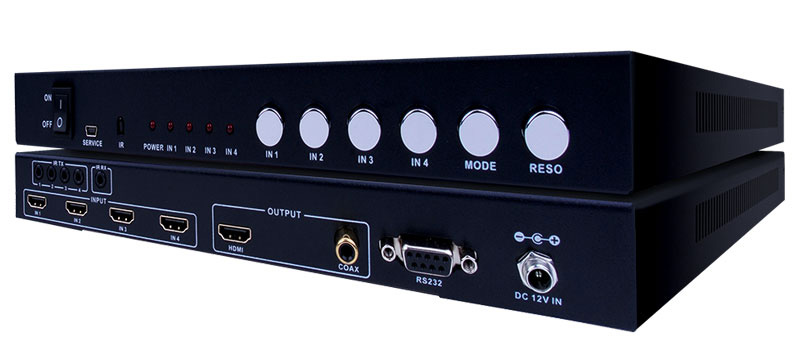

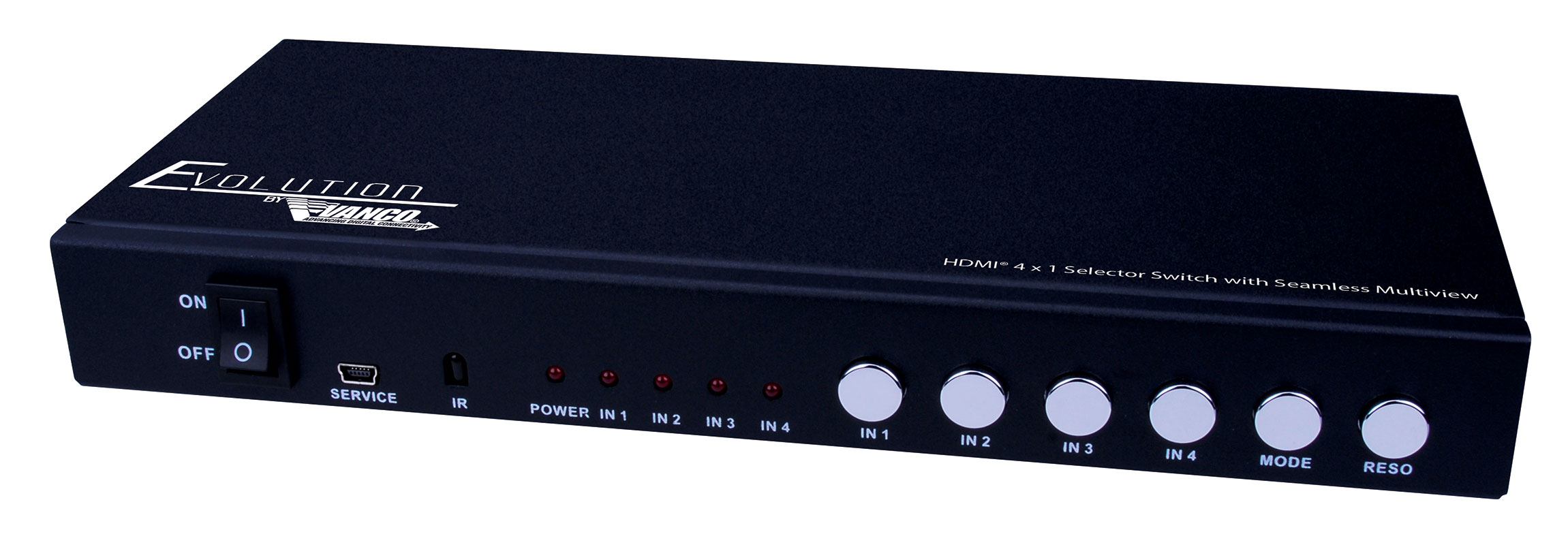

High performance 4 x 1 HDMI switcher with Quad-View- Picture-in-Picture (PIP) capabilities and seamless switching
Supports four HDMI inputs which can be displayed on one screen either equally in Quad-View mode or with a larger main source in PIP mode
Control through the front panel button control- IR control- and RS232 control

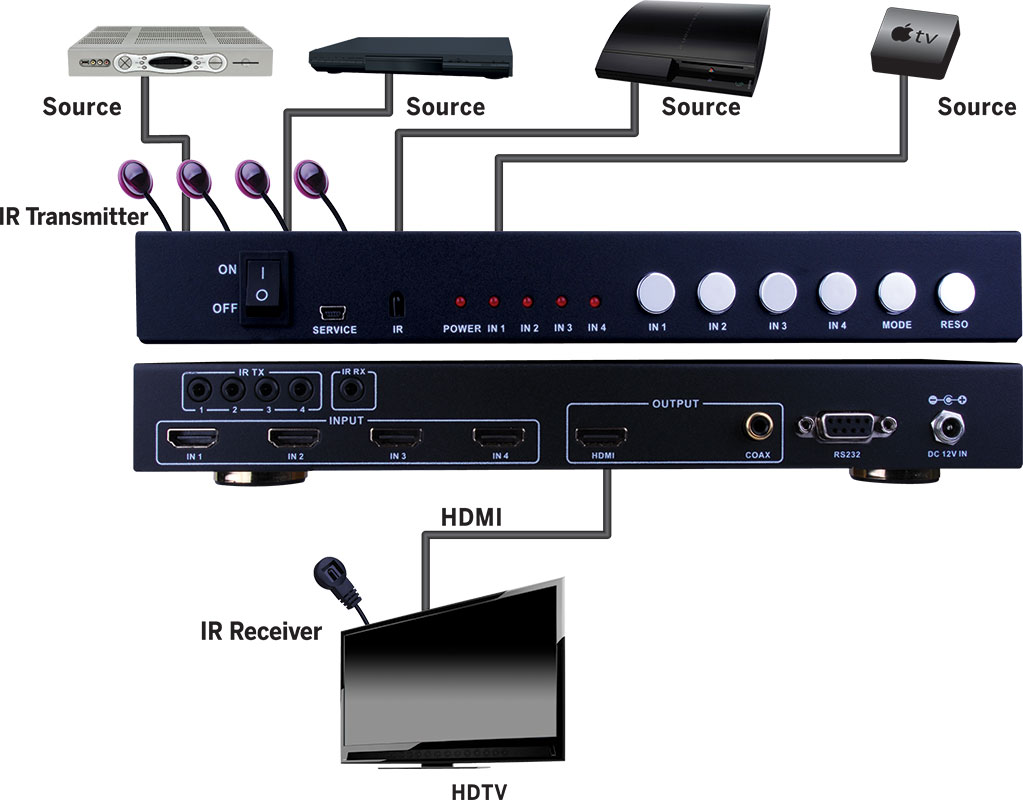

IR system allowing for control of source(s) at display end
HDMI 1.3a and HDCP Compliant
Supports up to 1080p High Definition resolution
Up/down scaler functionality
Support digital audio format LPCM/AC3/DTS

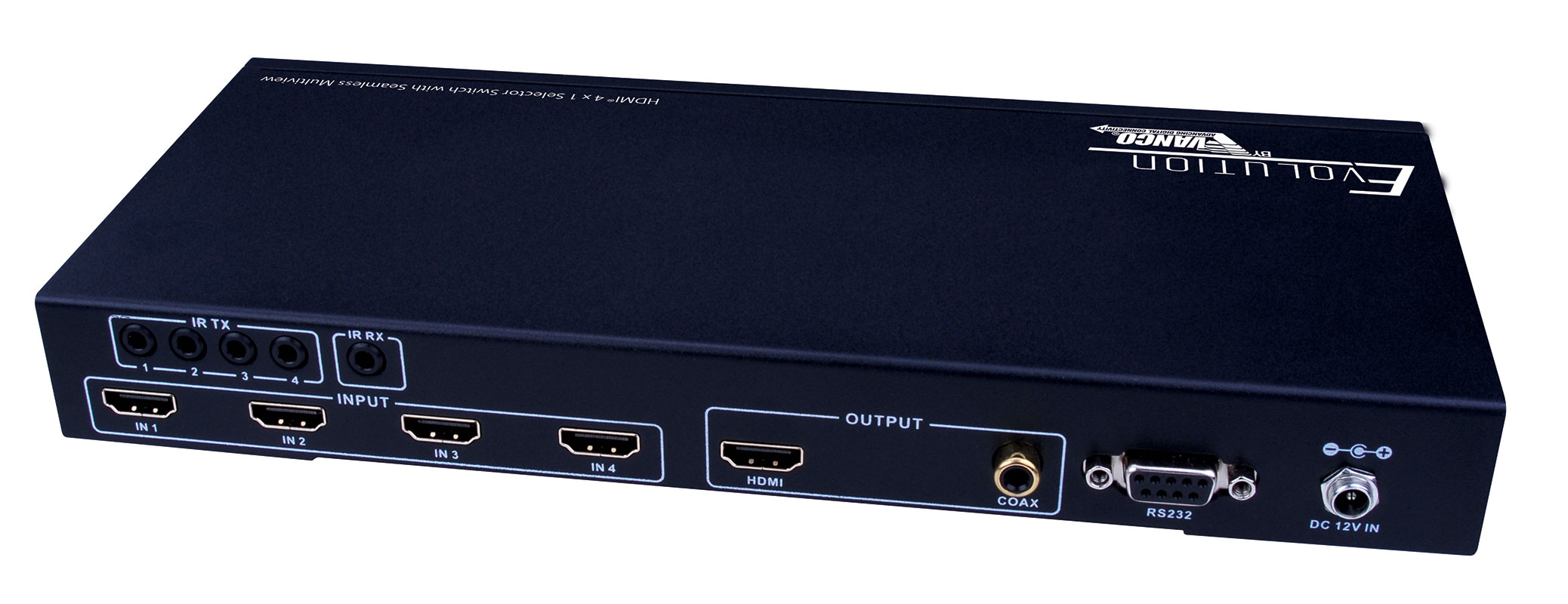

Coaxial Audio breakout
Power Supply: 12V/2.5A DC
Dimensions: 9.84” W x 1.25” H x 4.64” D

Package Contents:

4×1 Selector Switch EVSW1040
(4) Wideband IR Tx cables
(1) Wideband IR Rx cable
Remote Control
12V/2.5A DC power supply
RS232 cable
Product Manual
