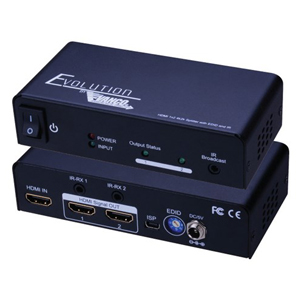

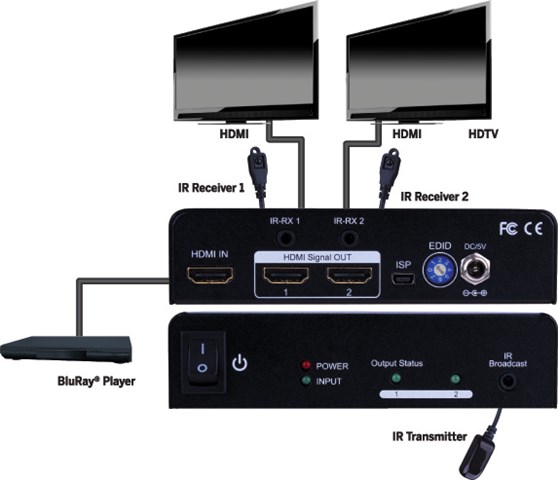

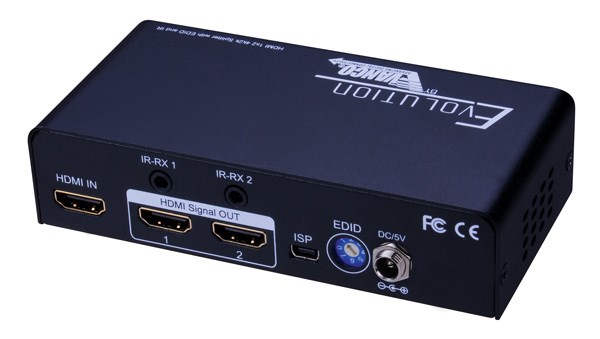

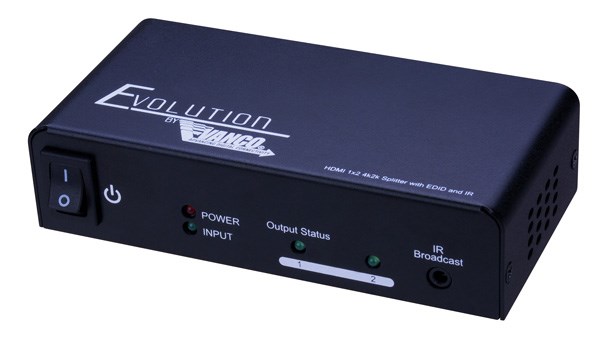

Allows 1 HDMI source to be displayed on up to 2 HDMI displays
Features EDID management which supports default HDMI EDID and has the ability to learn the EDID of display equipment
Fully cascadable so multiple units may be combined to create a larger HD distribution
Supports 4K2K (2160p) Ultra High Definition resolution
Simple Plug and Play solution
HDCP Compliant
EDID management
Supports HDMI Deep Color and 3D
DTS-HD Master Audio and Dolby TrueHD high bit rate audio support

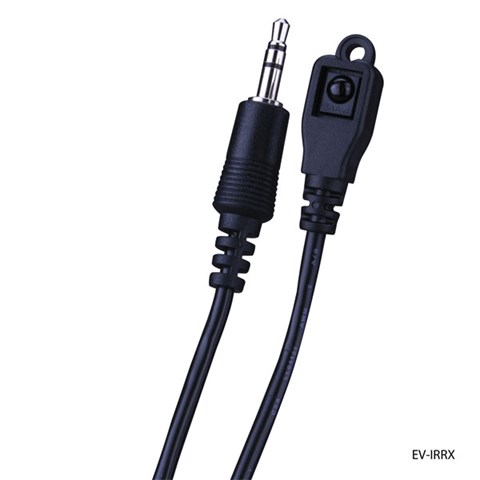

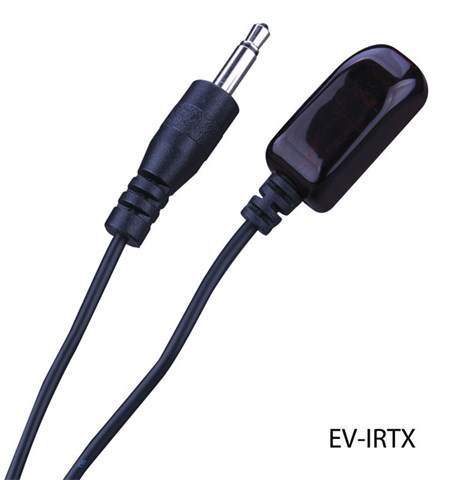

Wideband IR signal from 20KHz to 60KHz (IR accessories sold separately)
ISP port for firmware updates
Dimensions: 5.07” (129mm) W x 1.26” (32mm) H x 2.48” (63mm) D

Package Contents:

EVSP1002
(1) DC 5V in line power supply
Mounting hardware
Product Manual
