1×4 4K HDMI Splitter with UTP POE Ports and HDMI Pass Through

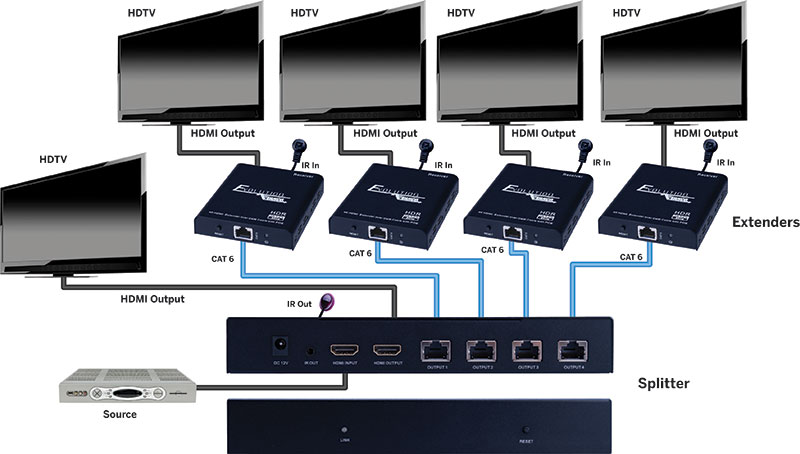

Allows a single source to be split and extended to multiple displays
Transmission Range: Extends 4K@60Hz, 4:4:4 Chroma or 4K@30Hz, 4:2:0 and HDR10 up to 98ft/30m, 4K@24/30Hz, 4:4:4 Chroma up to 164ft/50m, and 1080P@60Hz up to 197ft/60m over a single Cat5e/6 cable
Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/6, allowing the receivers to be powered without connecting a power supply
IR accessories included allowing for source control from each UTP display location
Features Auto EDID for plug and play installation
HDR10 Compatible
HDCP 1.4/2.2 compliant
Slim and compact design
Pure uncompressed 7.1ch digital audio
Supports DTS-HD and Dolby TrueHD high bit rate audio
Dimensions: 8.25” W x 4” H x 1.25” D
Receivers included
Package Contents:

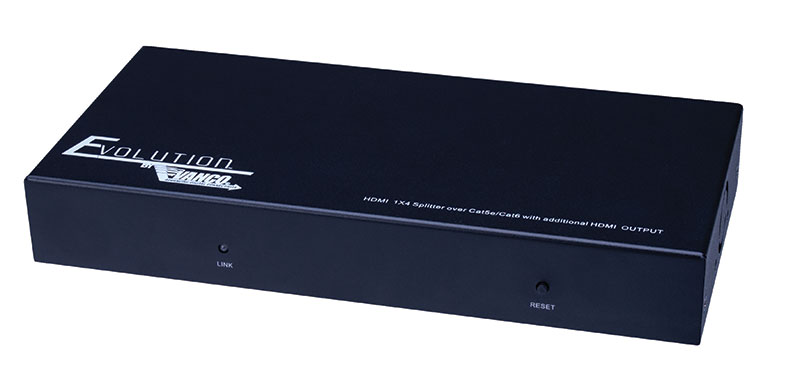

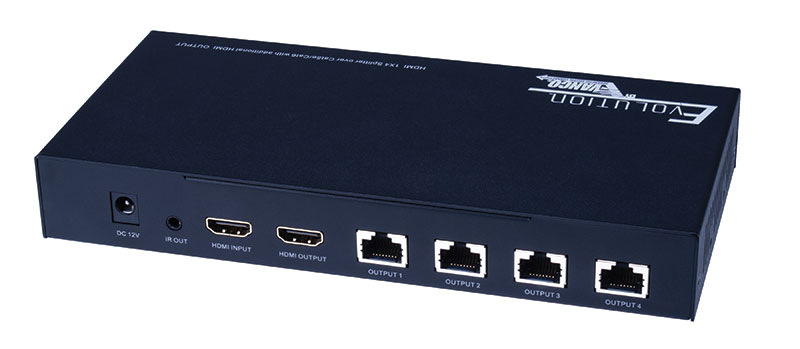

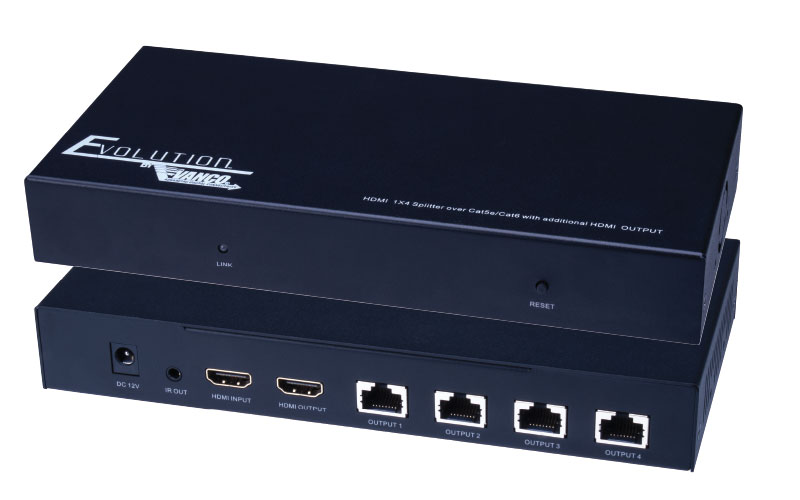

EV4K1014 4K HDMI 1×4 Splitter

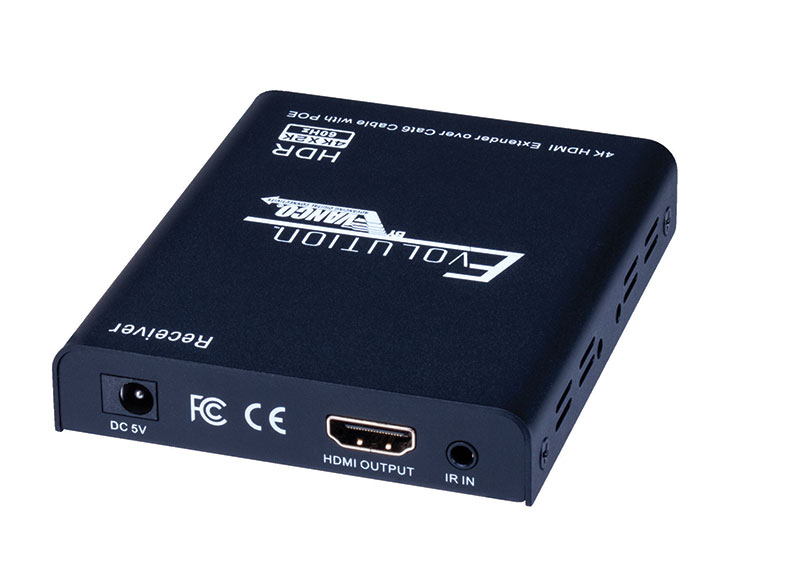

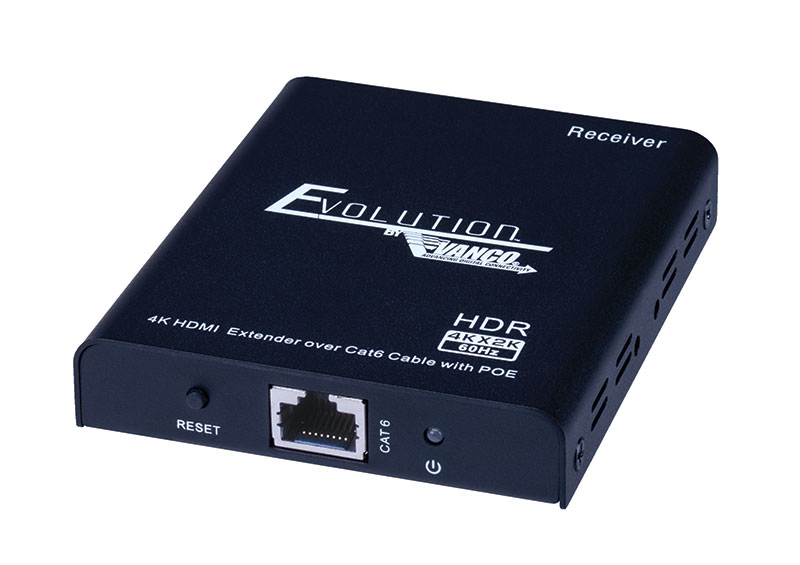

(4) EV4K1014-RX Receivers
IR Blaster
(4) IR Receivers
12V/3A Power Supply
Product Manual
