6 x 6 Audio Matrix with 6 Bridgeable zones to accommodate 1 or 2 speakers per zone
Provides a Whole House Audio Control System – expandable up to 3 units for 18 Zones of distributed audio

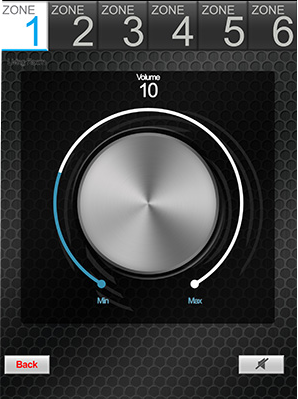

Integrated Wifi Adapter with available Android and IOS app that allows for control via smartphone or tablet

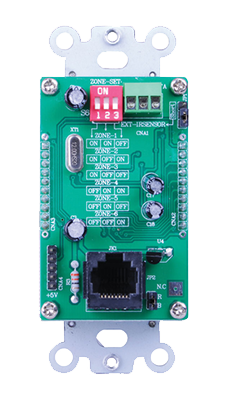

Optional keypads with modern design fit seamlessly into any room. Keypads are POE with Built-in IR Receivers (Keypads and 1 Cat5e/Cat6 Connection Hub included with Part # PA66KIT)
High efficiency Class D amplification
Stereo/Bridge mono output
Stereo/Bridge mode adjustable
IR remote controller for source select/volume/treble/bass
RS-232 port allows 2-way communication with the Home Automation
Power 230V and 115V adjustable
Ext. Mute & System on 3.5mm Mono Mini Phone Jacks
6 IR Emitter 3.5 mm Mono Mini Phone Jacks + 1 IR Emitter 3.5mm Mono for All Output Jack
1 PA Input Jack to set all Zone to Source 1
3 Zone Pre-AMP Outputs to connect external power amplifer
Integrate and control your streaming services with PulseAudio’s PASTREAM integrated audio source streamer or CasaTunes multi-room, multi-mode music services (sold separately)

Tech Support Tips:

The RS232-IP Adapter is included with the PA66AMP/PA66KIT, as it allows for hardwired connectivity of the PA66 for remote controllability, for any application where wireless signals are a challenge

Package Contents:

6×6 Amplifier
Remote Control
RS232-IP and Router
Expansion Ribbon Cable
Rack Mounting Ears – 2 (Installed on Amp)
Speaker Terminal Blocks – 6 (Installed on Amp)
Keypad Connection Hub and Decora Wall-plate (only PA66KIT)
POE Keypads with built-in IR RX and Decora Wall-plates – 6 (only PA66KIT)
AC Power Cable
Product Manual
