View Our Extender Comparison Guide

Replaced by HDMIEX50

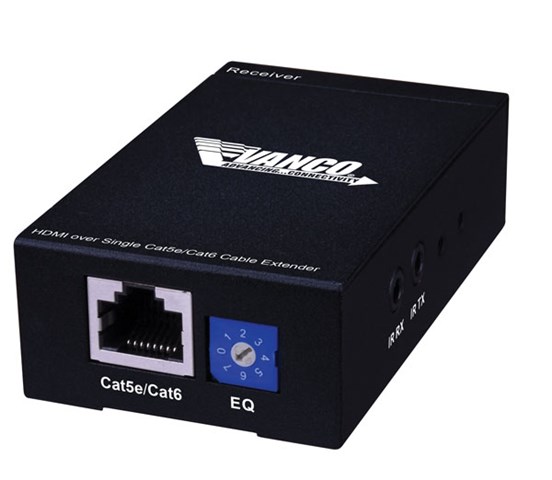

Allows HDMI Audio/Video signals to be transmitted over a single Cat5e/6 cable
Transmission Range: Extends 1080p resolution up to 164ft/50m over a single Cat5e or Cat6 cable
Wideband Bi-directional IR system allowing for control of source or display (IR accessories included)
Wideband IR signal from 20KHz to 60KHz
Features EDID management which supports default HDMI EDID and has the ability to learn the EDID of display equipment
Features EQ distance adjustment switch for perfect transmission and reception of HDMI signals
Pure unaltered uncompressed 7.1ch digital HDMI over a single Cat5e/6 cable transmission
Supports DTS-HD and Dolby TrueHD high bit rate audio
Works with HDMI and HDCP compliant devices
Supports up to 1080p High Definition resolution
Compact design for an easy and flexible installation
Power Supply: 5V DC
Dimensions: 1.9” (49mm) W x 1” (25mm) H x 3.2” (80mm) D

Package Contents:

(1) 280591 [TX & RX]
(1) IR Blaster (TX)
(1) IR Receiver (RX)
(2) DC 5V in line power supply
(1) User Manual
