View Our Extender Comparison Guide

Replaced by EVEX2006

Allows HDMI audio/video signals to be transmitted using a single Cat5e or Cat6 Cable
Wide band Bi-directional IR system allowing for control of source or display (IR accessories included) Wideband IR signal from 20KHz to 60KHz
Transmission Range: Extends 1080p resolution up to 131ft/40m over Cat5e/6
Works with HDMI and HDCP compliant devices
Supports up to 1080p High Definition resolution
Features EDID management which supports default HDMI EDID and has the ability to learn the EDID of display equipment
Features EQ distance dial for perfect transmission and reception of HDMI signals
Supports HDMI Deep Color & 3D
Extends HDMI transmission up to 40m (131ft) from the HDMI source at Full HD 1080p 24-bit
HDCP 2.0 compliant
EDID manual select control – Supports copy EDID and auto EDID learning
Pure unaltered uncompressed 7.1ch digital HDMI over a single Cat5e/6 cable transmission
Supports DTS-HD and Dolby TrueHD high bit rate audio

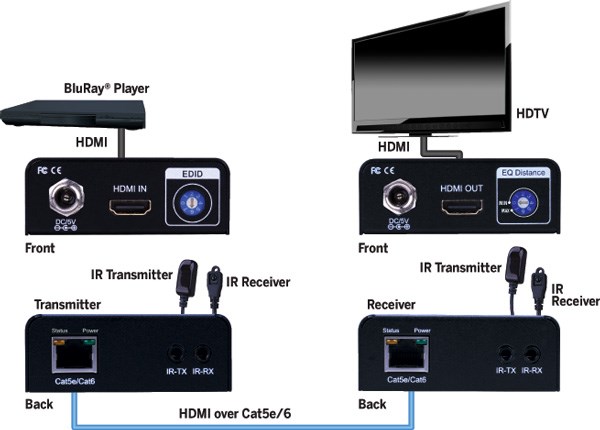

Allows cascading to create a larger distribution system
Wall mounting housing design for easy installation
Fully compatible with any Evolution by Vanco product
Dimensions: 3.6” (91mm) W x 1.1” (28mm) H x 2.8” (71mm) D

Package Contents:

EVEX2005 (TX & RX)
IR Blaster (TX)
IR Receiver (RX)
(2) DC 5V in line power supply
Mounting hardware
Product Manual
