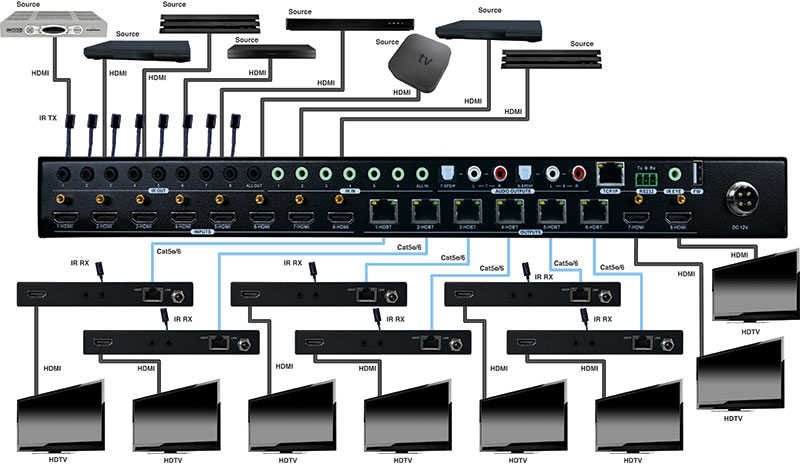

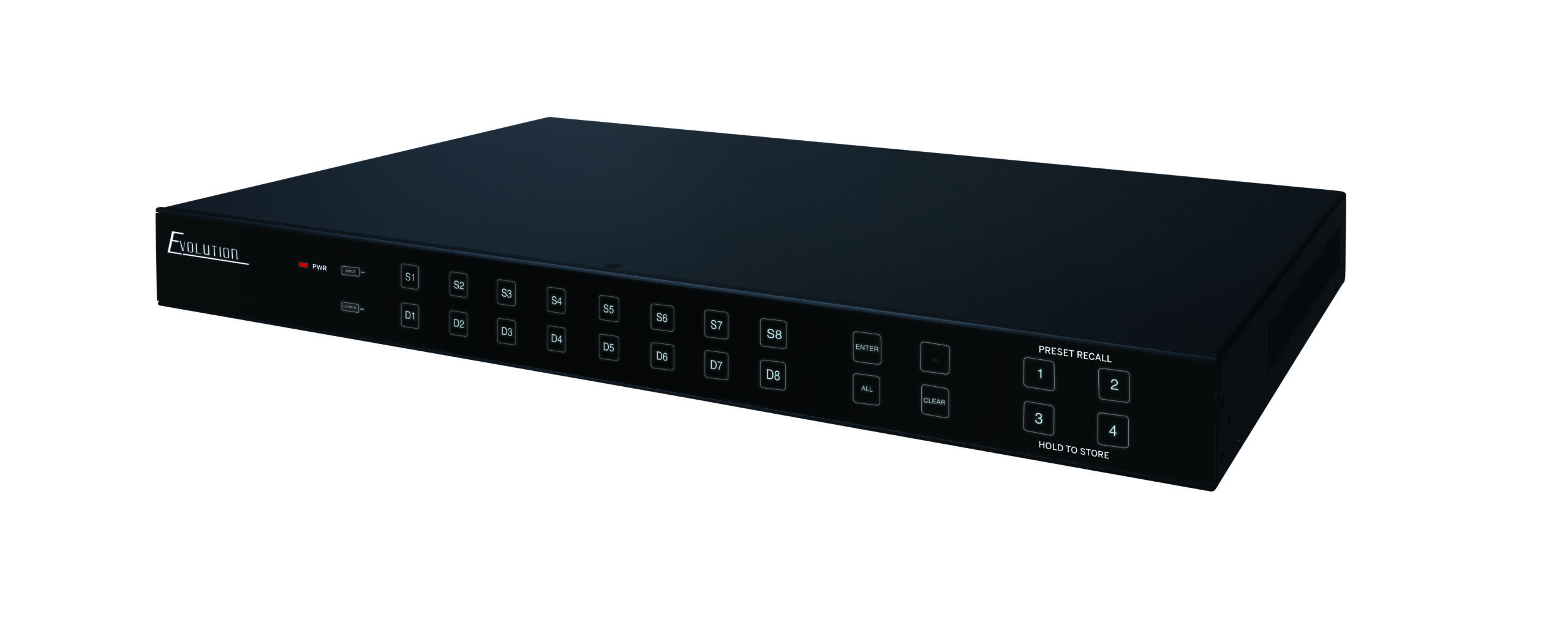

4K 8×6 HDBaseT Matrix that accommodates 6 HDBaseT outputs and 2 HDMI outputs
Extends 4K@60Hz 4:4:4, and HDR10 up to 131ft/40m over a single Cat6 cable
Outputs 4K@60Hz 4:4:4, HDR10 and Dolby Vision on the HDMI inputs and outputs
Extends 1080p resolution up to 230ft/70m over a single Cat6 cable
PoC receivers sold separate (EVRXHD2 and EVRXDSC)
Features POC (Power over Cable) technology – providing power for the receivers resulting in easy installation
HDCP 2.2 compliant
Digital and analog audio breakouts for the HDMI outputs
Built-in EDID management and advanced HDCP handling
Controllable via front panel, IR, RS-232 and third party control systems, as well as a built in GUI via IP connection
Features bi-directional IR and RS-232 for source and/or display control
Includes EV-IRMST IR integration cable for seamless integration with 3rd Party IR Systems
Dimensions: 17.2” W x 1.7” H x 15” D
