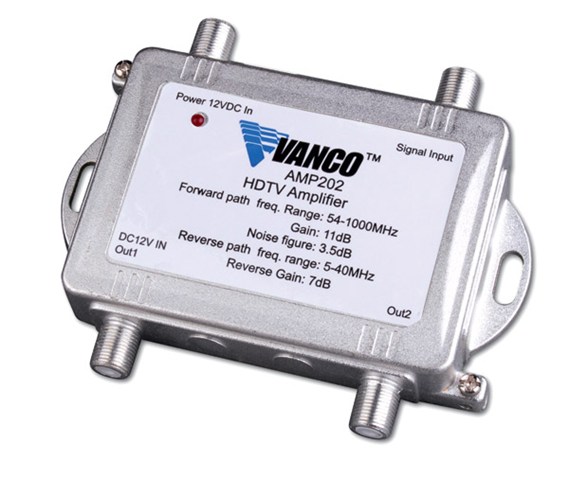

Amplifies Weak Video Signals caused by Splitting the Signal for Multiple Television Installations.
Handles all Cable and Off-Air Signals
Return Path for Cable Modem
Bidirectional
11 dB Gain- 1 GHz
Input: (1) 75 Ohm
Output: (2) 75 Ohm
Gain:

Forward Path: 11 dB +/- 2
Return Path: 7 dB +/- 2

Frequency Range:

Forward Path: 54-1000 MHZ
Return Path: 5-40 MHz

Noise Figure: < 4 dB
Input/Output Return Loss: > 12 dB
Insertion Loss: – 5 dB
Max Output Level @ – 60 dB IMD: > 98
DC Pass: Input/Output
LED Indicator Light
Metal Housing: Good RFI Shielding
Power Supply: 12V DC- 50 Hz
